Hose Cutting Machine

Name: CF-100P Automatic Track-Feed Hose & Tube Cutting Machine
SKU: CF-100P
Availability: InStock

Automatic hose & tube cutting machines for high-volume production. Two models available — track-feed and conveyor belt.

100

Cuts/min max speed

±0.2%

Cut precision

2 Models

CF-100P & CF-200P

45 KG

Machine weight

Jump to: CF-100P Track-Feed CF-200P Conveyor Belt

Model CF-100P

CF-100P Automatic Track-Feed Hose & Tube Cutting Machine

High-speed track-feed system · ±0.2% precision · Up to 100 cuts/min · Built for high-volume production

CF-100P Automatic Track-Feed Hose Cutting Machine

Basic Specifications

Model	CF-100P
Power	800W / 220V / 50Hz
Drive Mode	Electric + Pneumatic
Cut Precision	±0.2%
Cut Length Range	0.1mm – 99,999.9mm
Cut Width	1 – 90mm
Blade Stroke	1 – 55mm
Feed Speed	700 mm/sec
Blade Actuation	Air cylinder driven
Display	128×64 LCD, CN/EN
Machine Weight	45 KG
Dimensions (L×W×H)	560×460×480mm

Request a Quote Download Spec Sheet

The CF-100P combines a precision planetary stepper motor with pneumatic blade actuation — delivering consistent, clean cuts on PVC hoses, rubber tubes, flat hoses, and flexible pipe materials. Supports dual-lane or multi-strand simultaneous cutting with batch programming for unattended operation.

With a freely adjustable cut length range from 0.1mm to 99,999.9mm and a max speed of 100 cuts/min, the CF-100P is purpose-built for high-volume production lines requiring precision and reliability.

Compatible Materials

PVC Hose Rubber Tube Layflat Hose Flexible Pipe Multi-Lane Cutting Batch Production

Key Features

High-Speed Feed — Auto/manual mode switchable; up to 100 cuts/min at 50mm cut length.

Ultra-Wide Length Range — 0.1mm to 99,999.9mm in 0.1mm increments.

Multi-Lane Cutting — Dual-row or multi-strand simultaneous cutting; speed & length continuously adjustable.

±0.2% Cut Precision — Microprocessor-controlled high-accuracy stepper motor drive.

Batch Production Ready — Total count preset, batch pause, segment scheduling, pause interval adjustment.

Clean, Flat Cut — Proprietary blade geometry + dedicated software eliminates ragged edges.

Bilingual LCD — One-key CN/EN toggle; large 128×64 display for easy operation.

Package Includes

Main Control Board Keypad Panel 128×64 LCD Screen Motor Driver Unit Feed Motor Blade Motor Mechanical Frame Black Steel Cutting Blade Limit Fixture Clamp Tool Kit User Manual Maintenance Manual Warranty Card Power Cable

Model CF-200P

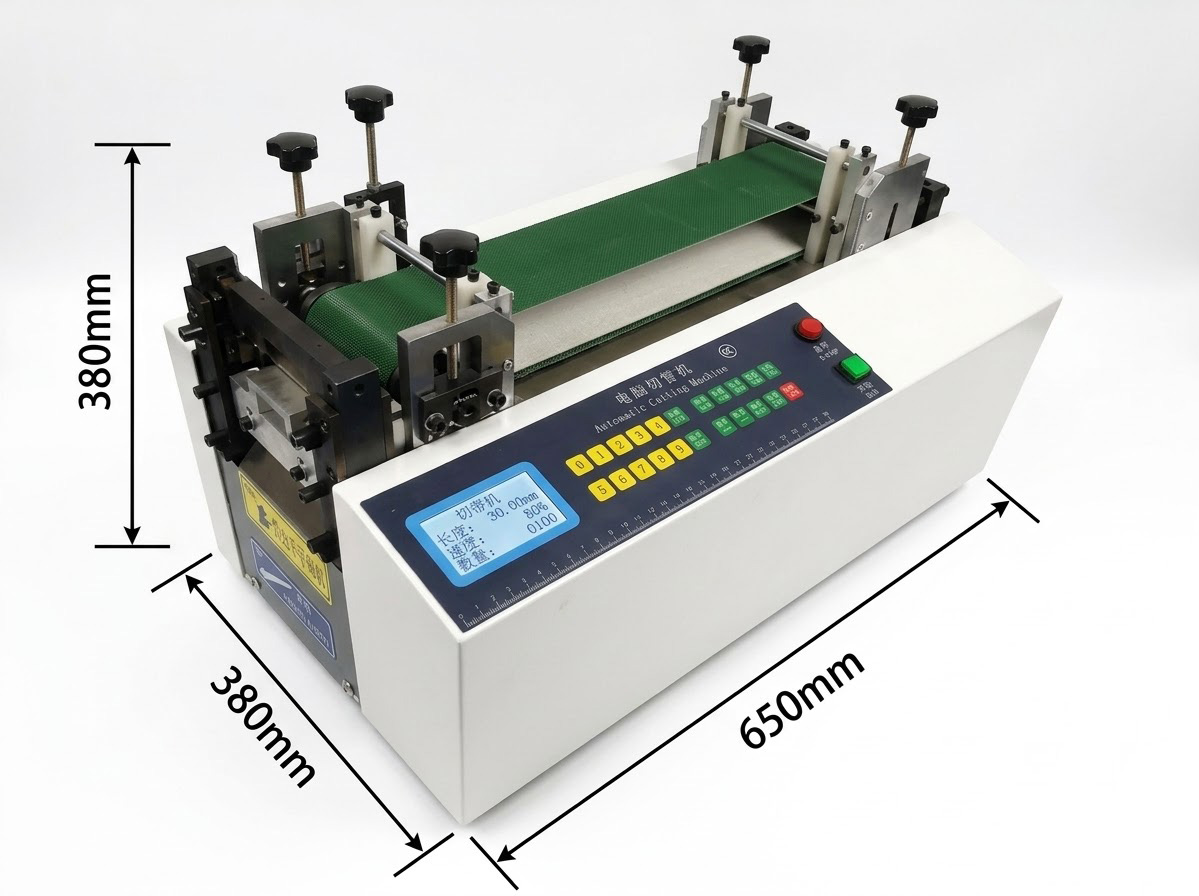

CF-200P Conveyor Belt Automatic Hose Cutting Machine

Belt-feed system · Precision microcomputer control · Suitable for soft and deformable materials

Technical Parameters

Model	CF-200P
Power Supply	110/220V 50/60Hz
Power	500W – 1000W
Cutting Length	0.1 – 9,999.9mm
Cutting Width	0.1 – 140mm
Cutting Height	0.1 – 40mm
Working Speed	1 – 40 m/min
Feeding Method	Dual-motor conveyor belt
Blade Material	High-speed steel thin knife
Machine Size (L×W×H)	650×380×380mm
Machine Weight	45 KG
Packing Size	700×440×520mm / 60KG

Request a Quote Spec Sheet

The CF-200P uses a dual-motor conveyor belt feeding system — a significant improvement over traditional roller feeding. The larger contact area between belt and material improves feeding accuracy while minimising deformation, making it ideal for soft, flexible, and irregularly shaped hoses.

Controlled by a microcomputer program with full CN/EN LCD display, the CF-200P offers precise length and speed control, batch cutting, and automatic count accumulation for unattended production runs.

Scope of Application

Insulation Tube Seal Strip Rubber Strip Corrugated Tube Soft Water Hose High Pressure Hose Silicone Tube Oil Tube

Key Functions

Microcomputer automatic control — Automatic feeding and cutting. CN/EN LCD display for simple, convenient operation.

Continuously adjustable length and speed — Freely set cut length and conveyor speed to suit different materials.

Batch production ready — Automatic group accumulation, total count, batch pause, and delay time settings.

Dual-motor 4-wheel conveyor feeding — Belt transmission ensures accurate, deformation-free feeding for soft and curved materials.

Adjustable feeding and cutter height — Accommodates different material thicknesses. Easy to set up and switch between jobs.

Cutter protection and manual mode — Built-in cutter time protection and manual operation mode for easy debugging.

CF-100P vs CF-200P — Which to Choose?

Feature	CF-100P	CF-200P
Feed System	Track-feed (planetary stepper)	Conveyor belt (dual motor)
Max Speed	100 cuts/min	1–40 m/min
Cut Precision	±0.2%	5/1000 theoretical
Cut Width	1–90mm	0.1–140mm
Best For	Rubber & rigid hose	Soft, flexible & corrugated tube
Multi-lane Cutting	✓ Yes	✓ Yes

Frequently Asked Questions

What is the difference between the CF-100P and CF-200P cutting machines?

The CF-100P uses a track-feed system rated up to 100 cuts/min at ±0.2% precision with cut lengths from 0.1mm to 99,999.9mm — built for high-volume production of PVC hose, rubber tube and layflat hose. The CF-200P uses a dual-motor conveyor belt that minimises deformation, making it the better choice for soft, flexible and irregularly shaped hoses up to 140mm wide.

What materials can CNFLEX hose cutting machines cut?

PVC hoses, rubber tubes, layflat hoses and flexible pipe materials. The CF-200P conveyor belt model is specifically designed for soft and deformable materials that roller or track feeding would distort.

What are the power requirements for the cutting machines?

The CF-100P runs on 800W at 220V/50Hz with electric plus pneumatic drive (air cylinder blade actuation). The CF-200P runs on 500–1000W and accepts 110V or 220V at 50/60Hz.

What is included with each cutting machine?

Each machine ships with the main control board, keypad panel, 128×64 LCD screen, motor driver unit, feed and blade motors, mechanical frame, steel cutting blade, limit fixture clamp, tool kit, user and maintenance manuals, warranty card and power cable.
